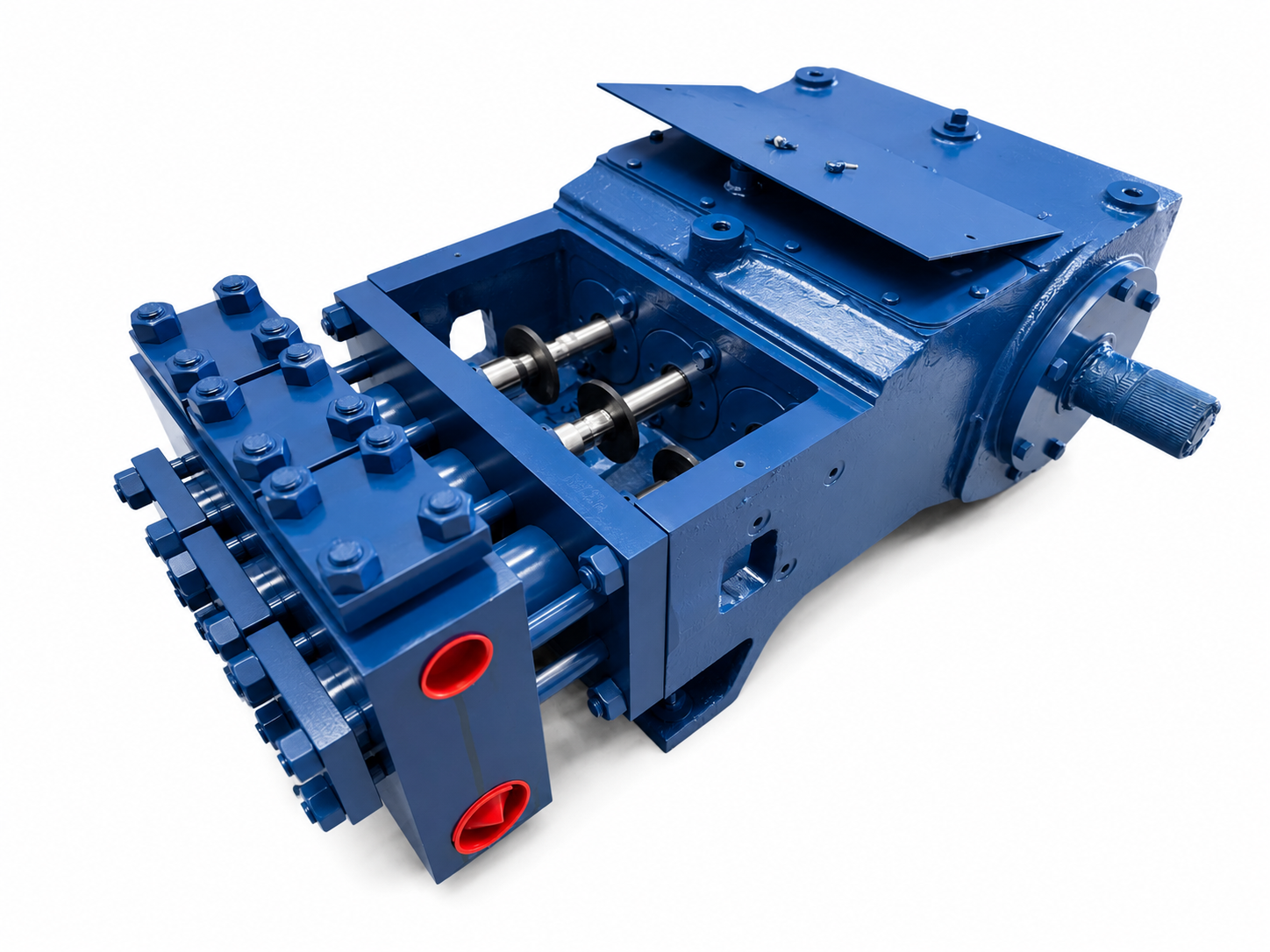

Union TD-60 Triplex Pump And Parts Specifications
Union TD-60 Triplex Pump Parts For Sale At Permian Pump And Power, LLC In Odessa Texas - In The West Texas Permian Basin
|
TD-60 (HIGH PRESSURE)
|
| Pumping Capacity in Gallons Per Minute (GPM) |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Plunger Size |
Area of Plunger |
Max Pressure |
Gal/Rev |
|
Pump Speed (RPM) |
| |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
523 |
|
|
|
| 3/4 in. |
0.442 |
10000 |
0.017 |
|
3 |
4 |
5 |
6 |
6 |
7 |
8 |
9 |
|
|
|
| 7/8 in. |
0.601 |
7409 |
0.023 |
|
4 |
5 |
6 |
8 |
9 |
10 |
11 |
12 |
|
|
|
|
| Horsepower: |
60 |
| No. of Cylinders: |
3 |
| Stroke Length: |
3" |
| Max Working Pressure: |
10000 PSI |
| Rod Load Rating: |
4455 LBS |
| Minimum Plunger Size: |
0.75" |
| Maximum Plunger Size: |
0.875" |
| Minimum Speed: |
175 |
| Maximum Speed: |
523 |
| Suction Port: |
1.5" N.P.T. |
| Discharge Port: |
1" N.P.T. |
| Pump Weight: |
1050 LBS |
|
TD-60 (MEDIUM-HIGH PRESSURE)
|
| Pumping Capacity in Gallons Per Minute (GPM) |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Plunger Size |
Area of Plunger |
Max Pressure |
Gal/Rev |
|
Pump Speed (RPM) |
| |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
523 |
|
|
|
| 1 in. |
0.785 |
5670 |
0.031 |
|
5 |
7 |
8 |
10 |
11 |
13 |
15 |
16 |
|
|
|
| 1 1/8 in. |
0.994 |
4482 |
0.039 |
|
7 |
9 |
11 |
13 |
15 |
16 |
18 |
20 |
|
|
|
|
| Horsepower: |
60 |
| No. of Cylinders: |
3 |
| Stroke Length: |
3" |
| Max Working Pressure: |
5670 PSI |
| Rod Load Rating: |
4455 LBS |
| Minimum Plunger Size: |
1" |
| Maximum Plunger Size: |
1.125" |
| Minimum Speed: |
175 |
| Maximum Speed: |
523 |
| Suction Port: |
2" N.P.T. |
| Discharge Port: |
1.25" N.P.T. |
| Pump Weight: |
975 LBS |
|
TD-60 (MEDIUM PRESSURE)
|
| Pumping Capacity in Gallons Per Minute (GPM) |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Plunger Size |
Area of Plunger |
Max Pressure |
Gal/Rev |
|
Pump Speed (RPM) |
| |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
523 |
|
|
|
| 1 1/4 in. |
1.227 |
3300 |
0.048 |
|
8 |
11 |
13 |
16 |
18 |
20 |
23 |
25 |
|
|
|
| 1 3/8 in. |
1.485 |
3000 |
0.058 |
|
10 |
13 |
16 |
19 |
22 |
25 |
27 |
30 |
|
|
|
| 1 1/2 in. |
1.767 |
2521 |
0.069 |
|
12 |
15 |
19 |
22 |
26 |
29 |
33 |
36 |
|
|
|
| 1 5/8 in. |
2.074 |
2148 |
0.081 |
|
14 |
18 |
22 |
26 |
30 |
34 |
38 |
42 |
|
|
|
| 1 3/4 in. |
2.405 |
1852 |
0.094 |
|
16 |
21 |
26 |
30 |
35 |
40 |
45 |
49 |
|
|
|
| Horsepower: |
60 |
| No. of Cylinders: |
3 |
| Stroke Length: |
3" |
| Max Working Pressure: |
3300 PSI |
| Rod Load Rating: |
4455 LBS |
| Minimum Plunger Size: |
1.25" |
| Maximum Plunger Size: |
1.75" |
| Minimum Speed: |
175 |
| Maximum Speed: |
523 |
| Suction Port: |
2.5" N.P.T. |
| Discharge Port: |
1.5" N.P.T. |
| Pump Weight: |
1025 LBS |
|
TD-60 (MEDIUM-LOW PRESSURE)
|
| Pumping Capacity in Gallons Per Minute (GPM) |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Plunger Size |
Area of Plunger |
Max Pressure |
Gal/Rev |
|
Pump Speed (RPM) |
| |
175 |
225 |
275 |
325 |
375 |
425 |
475 |
523 |
|
|
|
| 1 7/8 in. |
2.761 |
1500 |
0.108 |
|
19 |
24 |
30 |
35 |
40 |
46 |
51 |
56 |
|
|
|
| 2 in. |
3.142 |
1418 |
0.122 |
|
21 |
28 |
34 |
40 |
46 |
52 |
58 |
64 |
|
|
|
| 2 1/8 in. |
3.547 |
1256 |
0.138 |
|
24 |
31 |
38 |
45 |
52 |
59 |
66 |
72 |
|
|
|
| 2 1/4 in. |
3.976 |
1120 |
0.155 |
|
27 |
35 |
43 |
50 |
58 |
66 |
74 |
81 |
|
|
|
| 2 3/8 in. |
4.430 |
1006 |
0.173 |
|
30 |
39 |
47 |
56 |
65 |
73 |
82 |
90 |
|
|
|
| 2 1/2 in. |
4.909 |
908 |
0.191 |
|
33 |
43 |
53 |
62 |
72 |
81 |
91 |
100 |
|
|
|
|
| Horsepower: |
60 |
| No. of Cylinders: |
3 |
| Stroke Length: |
3" |
| Max Working Pressure: |
1500 PSI |
| Rod Load Rating: |
4455 LBS |
| Minimum Plunger Size: |
1.875" |
| Maximum Plunger Size: |
2.5" |
| Minimum Speed: |
175 |
| Maximum Speed: |
523 |
| Suction Port: |
3" N.P.T. |
| Discharge Port: |
2" N.P.T. |
| Pump Weight: |
1150 LBS |
